The Settings Window
The settings window is a graphical frontend for dbg.project.json and dbg.contract.json. It lets you configure the behaviors of the Solidity compiler and debugger.

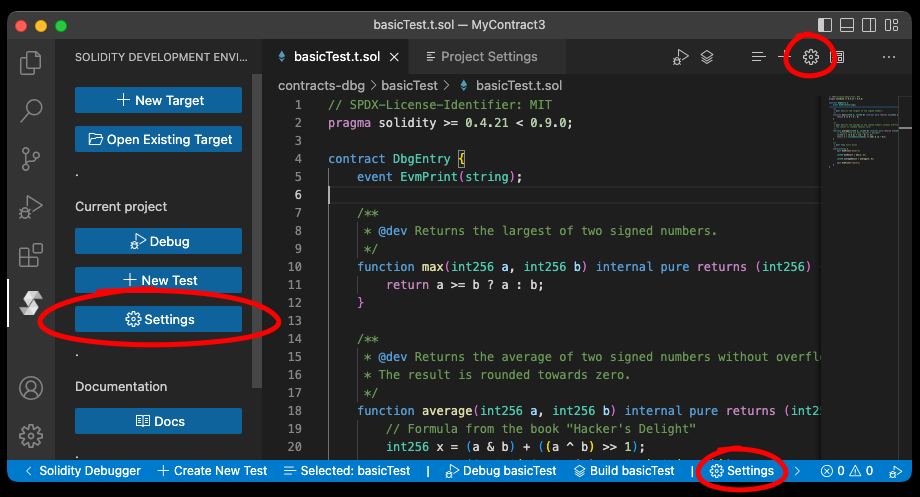

How to Open the Settings Window
There are three ways to open the settings window:

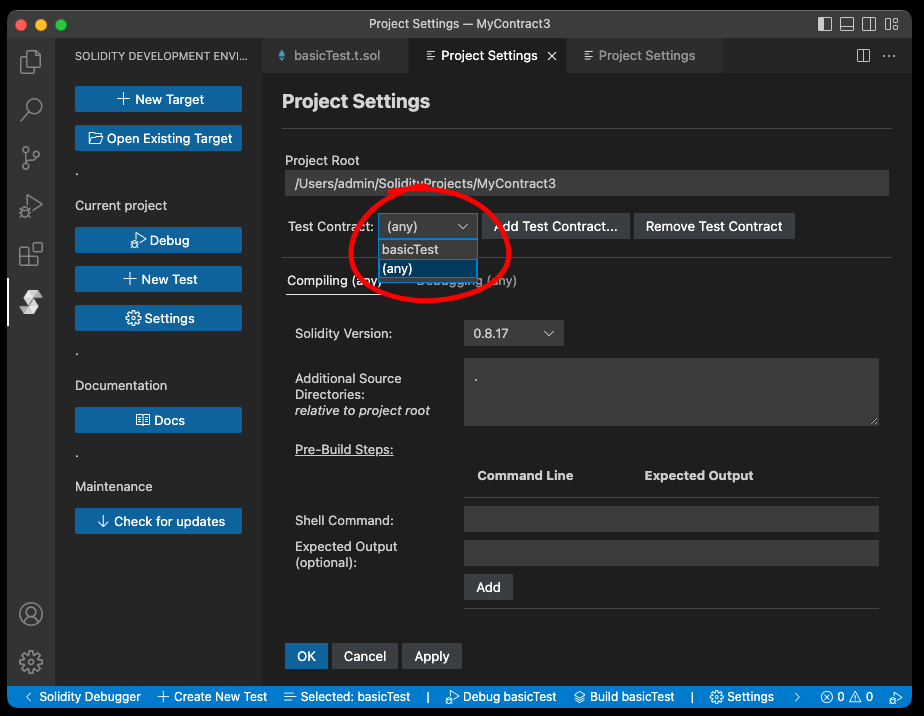

Test-Contract Selection
Settings can be changed for a particular test-contract, or they can be changed globally by selecting (any). Making changes to (any) sets global defaults that affect all tests. However, individual tests may override the global defaults with their own values.
Changes made to (any) are stored in dbg.project.json. Changes made to any other test are stored in contracts-dbg/TEST-NAME/dbg.contract.json
Compiler Settings
| Setting | What It Does |
|---|---|
| Solidity Version | Compiler version to use when compiling the selected test |
| Additional Source Directories | Additional import paths in case you need to import source files that reside in another directory. |
| Pre-Build Steps | Shell commands to run before compiling the test contract |
Debugger Settings
| Setting | What It Does |
|---|---|
| Break on Entry | Debugger will automatically stop at the beginning of the test contract |
| Show Storage Access (Verbose) | Verbose print all access to contract storage |
| Entry Point | Legacy value, leave it as-is |
| Forking→Enabled | You can start an instance of the debugger that forks another Ethereum node. This means that it will simulate having the same state as that node, but it will work as a local development network. That way you can interact with deployed protocols and test complex interactions locally |
| Forking→Ethereum RPC URL | URL of an Ethereum RPC node. For example: "https://eth-mainnet.alchemyapi.io/v2/KEY" |
| Forking→Block Number | The debugger will by default fork from the most recent block. However, if the provided URL points to an archive node you can also fork a past state |
| Hardhat Integration→ Import Debug Symbols from Hardhat Project | When enabled, the debugger will import symbols from the artifacts folder of a Hardhat project |
| Hardhat Integration→ Hardhat Project Root Directory | |
| Pre-Debug Steps | Shell commands to execute after compiling the test contract, but before the debugging session begins |
